Περιγραφή

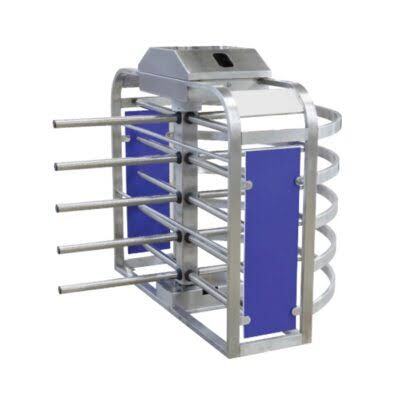

Τουρνικέ εισόδου T-2500D 4 πτερυγίων πλήρους ύψους μονό
SPECIFICATIONS
Control /Operation Voltage :
24VDC +-%20
24VDC +-%20
Power Consumption :
30W
30W
Tripod Locking :
With 24 V DC selenoids; lock when the selenoids are pulled.
With 24 V DC selenoids; lock when the selenoids are pulled.
Tripod Position Dedection :
Direction of the tripod position with two microswitches.
Direction of the tripod position with two microswitches.
Motion Control :
When the cycle starts to one direction, the reverse is blocked and after a half turn the rest of the cycle is completed, automatically and smoothly by a hydraulic shock absorber.
When the cycle starts to one direction, the reverse is blocked and after a half turn the rest of the cycle is completed, automatically and smoothly by a hydraulic shock absorber.
Installation :
Simple & easy installation
Simple & easy installation
Operation Temperature :
– 20° C – + 70° C
– 20° C – + 70° C
Indicators :
LED on both sides
LED on both sides
Dimensions :
1200x1422x2279 mm
1200x1422x2279 mm
Weight :
300-350 Kg
300-350 Kg
Optional Accesories :
Remote control, button unit,card reader,biometric reader.
Remote control, button unit,card reader,biometric reader.
